Understanding Air Compressor Parts and Their Functions for Optimal Performance

When it comes to air compressors, knowing each component and its role is essential for achieving maximum performance, energy efficiency, and long-term reliability. Every part in your compressed air system contributes to the smooth operation, whether you are using a screw air compressor, piston compressor, or other industrial models.

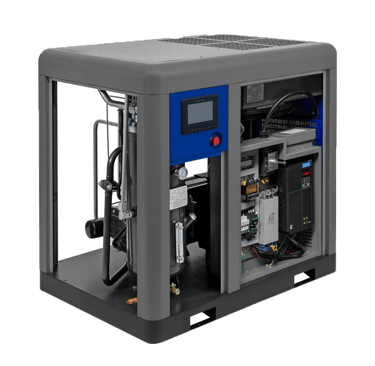

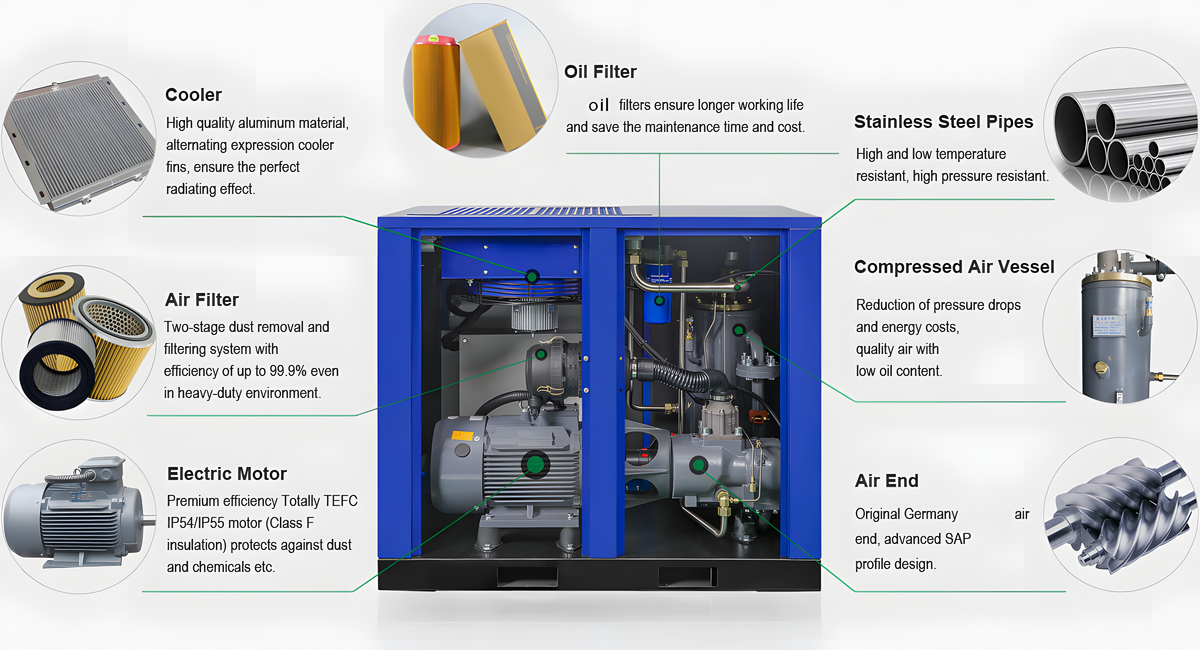

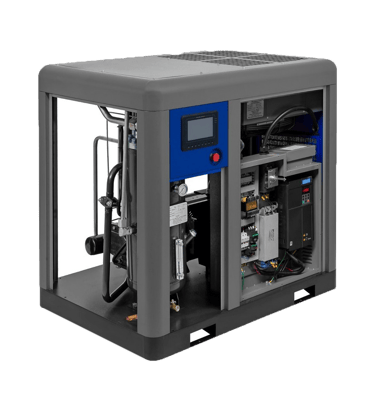

Main Components of an Air Compressor

Below is a detailed breakdown of the most important parts of an industrial air compressor and how they work:

1. Electric Motor
   Converts electrical energy into mechanical power, driving the compression process. A well-maintained compressor motor ensures consistent air delivery and reduces energy costs.

2. Compression Element
   This is the heart of the air compression process. Depending on the type, it could be a screw element, piston, or scroll unit. It compresses incoming air to the required pressure.

3. Air Receiver Tank (Storage Tank)
   Stores compressed air, balances pressure fluctuations, and provides a steady supply to your tools or production line. In oil-injected compressors, the tank also assists in separating oil from compressed air.

4. Pressure Switch
   Monitors the pressure level inside the tank and automatically starts or stops the compressor to maintain the desired operating range.

5. Intake Valve
   Regulates airflow into the compression chamber. It closes when the compressor is unloaded and opens when more air is needed.

6. Discharge Valve
   Releases compressed air from the tank to the downstream compressed air piping system.

7. Check Valve (Non-return Valve)
   Prevents backflow of air, ensuring that the system maintains pressure even when the compressor stops.

8. Air Filter
   Removes dust and contaminants from incoming air to protect the compressor element and improve air quality.

9. Oil Filter
   Cleans the compressor oil, preventing particles from damaging the rotor and bearings.

10. Regulation System
    Maintains consistent compressed air pressure, ensuring optimal performance and safety.

11. Lubrication System
    Reduces friction and wear by supplying the right amount of oil to moving parts.

12. Oil Separator
    In oil-injected models, this component separates oil from compressed air before it enters the piping system.

13. Water Separator
    Removes moisture and condensed water vapor to protect equipment and ensure dry air supply.

14. Cooling System
    Prevents overheating, extends component lifespan, and improves overall efficiency.

15. Control & Monitoring System
    Allows operators to track performance, detect faults, and optimize energy use.

How to maintain air compressor components?

How to maintain air compressor components?

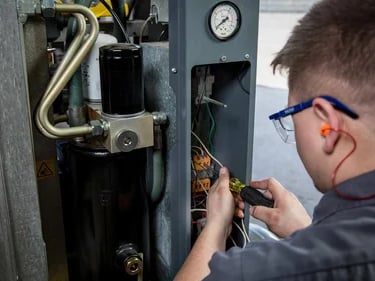

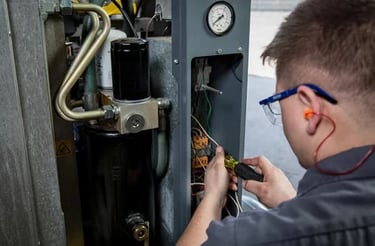

Maintaining your air compressor is vital for ensuring optimal performance and preventing premature repairs. Regular inspections and servicing of key components are particularly important for rotary screw air compressors. By addressing minor issues promptly, you can prevent them from escalating into major problems.

go to the article ->

Air Compressor Replacement Parts

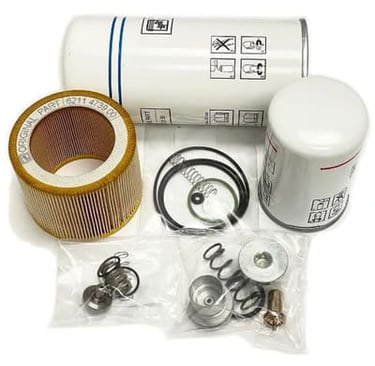

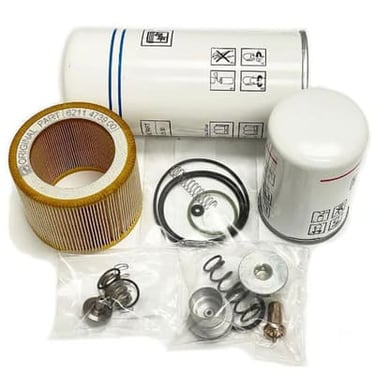

To keep your air compressor system working efficiently, some parts require periodic replacement:

• Filters & Separators
  High-efficiency filters prevent dust and contaminants from entering the rotor housing, ensuring long service life and minimizing downtime.

• Line Filter Cartridges
  Maintain clean air quality and reduce the risk of particles entering the system. ISO-certified filter cartridges offer better filtration efficiency, lower pressure drops, and extended lifespan.

• Lubricants & Compressor Oil
  The right compressor oil prevents wear, corrosion, and overheating. Using high-quality, specially formulated lubricants improves air quality, ensures better air/oil separation, and extends compressor life.

✅ Whether you operate a screw air compressor in a factory or a small piston compressor in a workshop, understanding these components is key to achieving energy efficiency, minimizing downtime, and reducing maintenance costs. For professional air compressor maintenance services and high-quality spare parts in Saudi Arabia, contact Green Star – Your trusted partner in
