Working Principle of a Rotary Screw Air Compressor

What is a Rotary Screw Air Compressor?

A rotary screw air compressor is a type of positive displacement compressor widely used in industrial applications. It operates with two interlocking rotors that compress air efficiently and continuously. Compared to piston compressors, screw compressors are easier to maintain, more reliable, and deliver a steady airflow, making them ideal for industries in Saudi Arabia and worldwide.

How to maintain air compressor components?

How to maintain air compressor components?

Maintaining your air compressor is vital for ensuring optimal performance and preventing premature repairs. Regular inspections and servicing of key components are particularly important for rotary screw air compressors. By addressing minor issues promptly, you can prevent them from escalating into major problems.

go to the article ->

How Does a Screw Compressor Work?

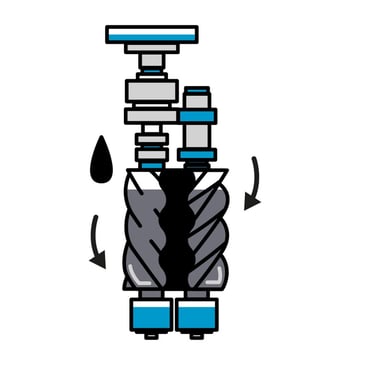

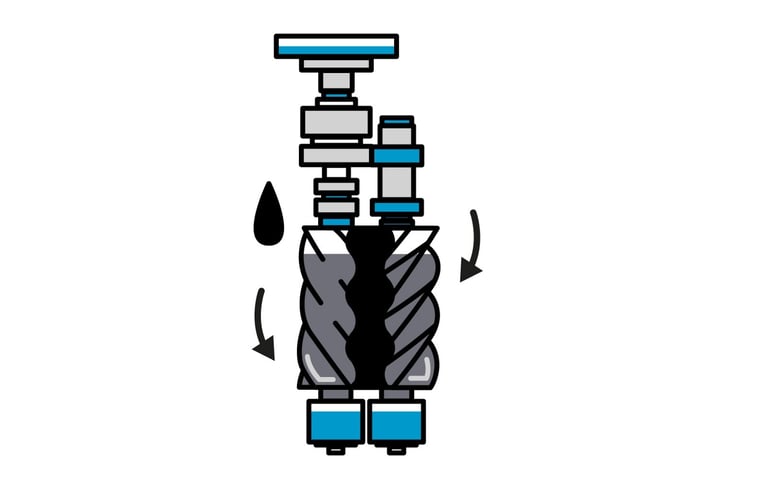

A screw compressor uses a male and female rotor that rotate in opposite directions. This action draws in air, compresses it as the space between the rotors decreases, and then displaces it to the outlet.

Each screw element has a built-in pressure ratio that depends on its design. For maximum efficiency, this ratio must match the required working pressure. Rotor speed is carefully optimized to minimize energy losses, whether due to heat or air leakage.

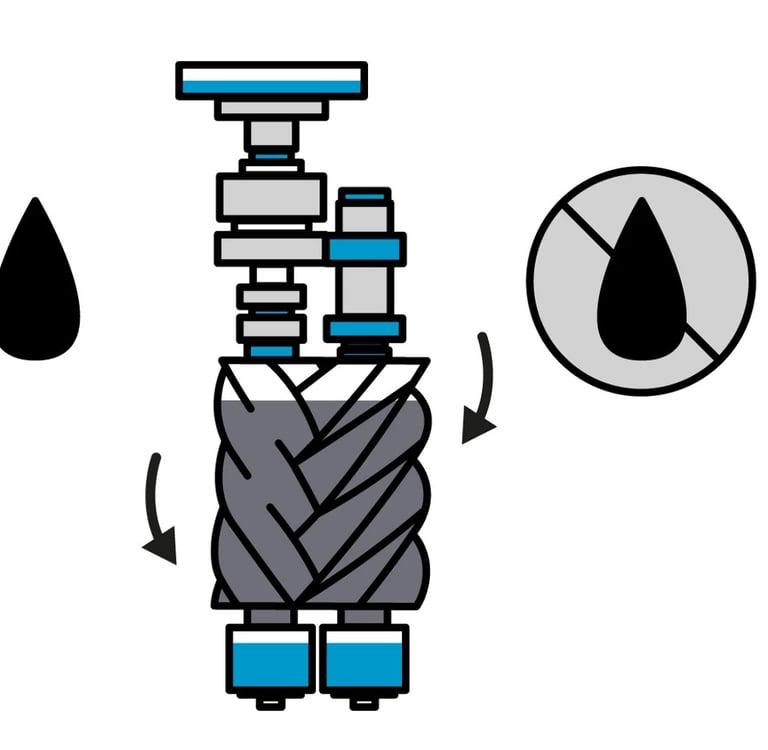

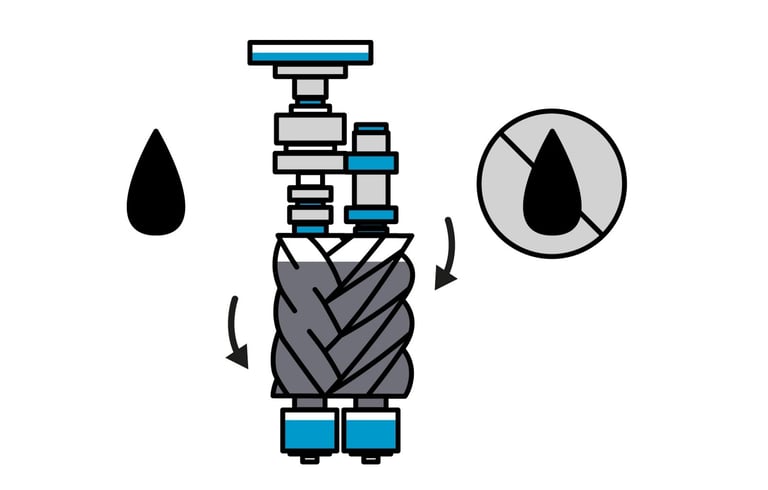

Types of Screw Compressors

Oil-Free Screw Compressors

Oil-free screw compressors use external gears to synchronize rotor movement. Since the rotors don’t contact each other or the housing, no lubrication is required inside the compression chamber. This ensures 100% oil-free compressed air, ideal for industries like food processing, pharmaceuticals, and electronics.

Oil-Lubricated Screw Compressors

Oil-lubricated screw compressors inject oil into the compression chamber to cool, lubricate, and minimize leakage. They are capable of reaching higher pressure ratios (up to 14–17 bar) with just one stage, although efficiency may decrease compared to oil-free models.

Fixed Speed vs Variable Speed Drive (VSD) Compressors

Fixed Speed Compressors

These compressors run at a constant speed and are efficient when operating continuously at full capacity. However, when air demand fluctuates, they waste energy because the motor keeps running even when no air is produced.

Variable Speed Drive (VSD) Compressors

VSD compressors adjust the motor speed based on air demand. This makes them more energy-efficient, especially during periods of low or fluctuating usage. Using VSD technology can save 35–60% in energy costs, making it a smarter choice for most industries.

Drive Options for Screw Compressors

Belt Drive

Affordable, durable, and easy to maintain, belt-drive compressors are suitable for small to medium operations.

Gear Drive

Gear-driven compressors are quieter and more energy-efficient compared to belt-driven models, though they require a higher initial investment.

Direct Drive

The most advanced option, direct-drive compressors offer superior efficiency, low noise, and high reliability. They are ideal for large industrial facilities with heavy air demand.

Screw Compressors in Saudi Arabia: Reliable Solutions for Industrial Efficiency

In Saudi Arabia’s growing industrial sector, rotary screw air compressors are vital for industries like oil & gas, petrochemicals, manufacturing, and construction. They ensure uninterrupted production, reduce energy costs, and improve overall efficiency. Companies seeking compressed air solutions in Saudi Arabia can rely on screw compressors for long-term, reliable performance.

Benefits of Screw Compressors in Industry

• Designed for 24/7 operation

• Deliver higher flow capacities with efficient heat dissipation

• Quieter compared to piston compressors

• Require less maintenance and have longer lifespans

• Compact design saves space

• More efficient than piston compressors at about 15 kW (20 hp) and above

• Lower oil carryover and cleaner compressed air output
