If the Compressor Air End is worn or damaged, can it be refurbished?

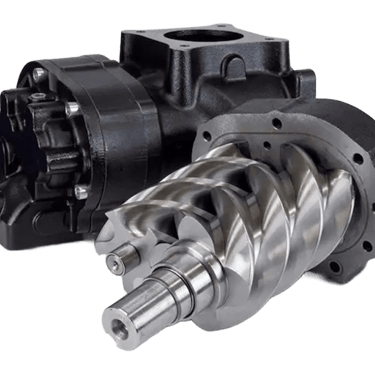

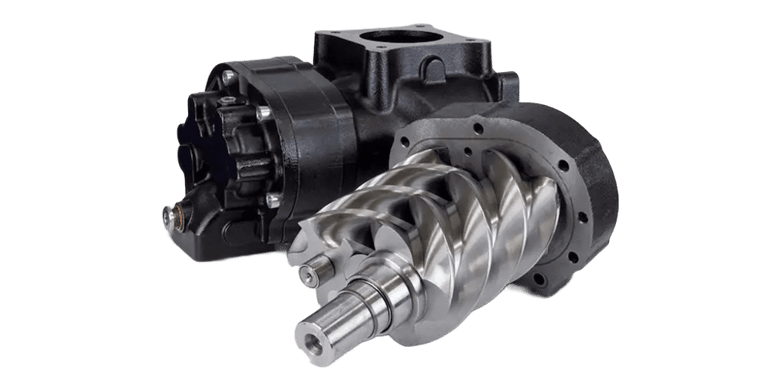

The Compressor Air End – The Heart of Every Air Compressor

efficiently and reliably. But among all these parts, one stands out as the most vital: the compressor air end. Often referred to as the heart of the compressor, the air end is where the actual compression process takes place. Without it, no rotary screw compressor or piston compressor could function.

This raises important questions:

• What happens if the air end suffers wear or damage?

• Can it be repaired, refurbished, or replaced?

How to maintain air compressor components?

How to maintain air compressor components?

Maintaining your air compressor is vital for ensuring optimal performance and preventing premature repairs. Regular inspections and servicing of key components are particularly important for rotary screw air compressors. By addressing minor issues promptly, you can prevent them from escalating into major problems.

go to the article ->

Why is the Air End So Important?

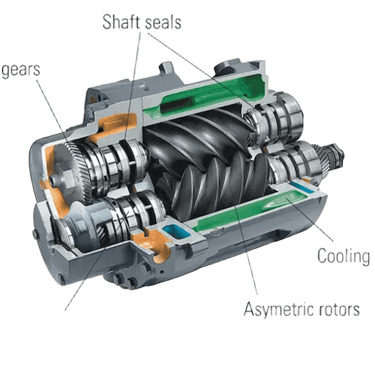

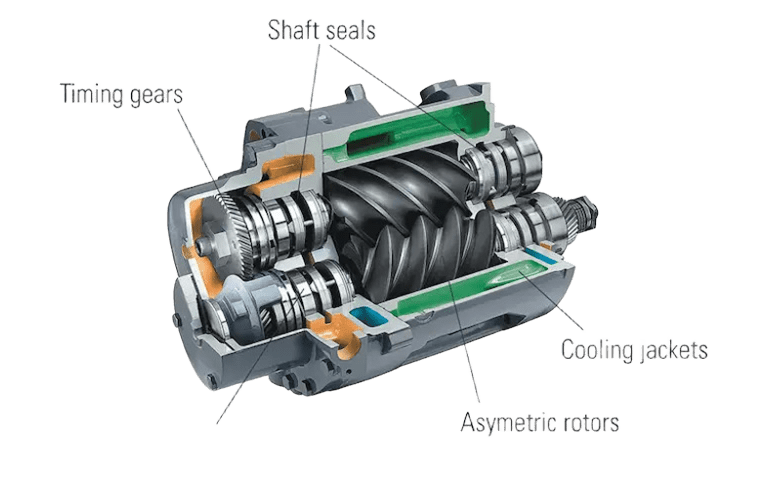

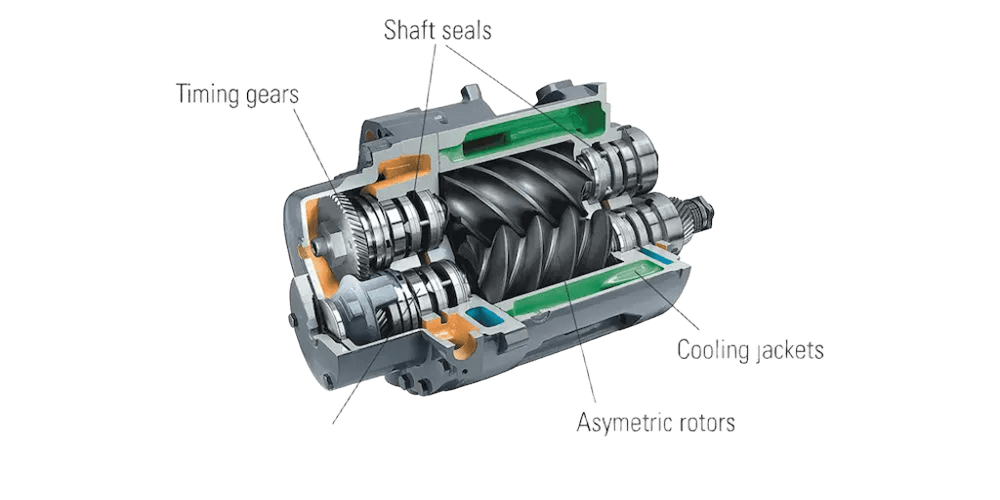

The air end, also known as the compressor element or compressor stage, is the central component where atmospheric air is compressed to the desired pressure. It determines the efficiency, output, and reliability of the entire compressed air system.

There are two main principles of compression:

1. Positive Displacement Compression

   • Achieved by reducing air volume.

   • Technologies include piston compressors, scroll compressors, tooth compressors, and rotary screw compressors.

2. Dynamic Compression

   • Uses centrifugal or turbo technology.

   • Relies on changing the speed of air or gas to achieve compression.

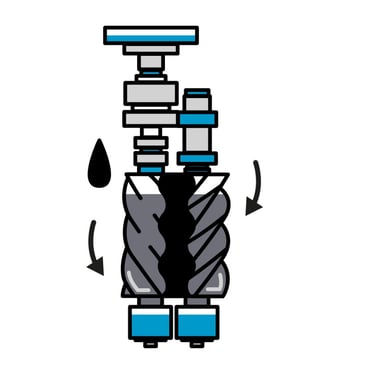

For most industrial applications, the rotary screw air compressor (oil-injected or oil-free) remains the most widely used solution due to its efficiency, durability, and ability to deliver a continuous supply of compressed air.

What Causes an Air End to Deteriorate?

Like all mechanical equipment, the compressor air end is subject to wear over time. Several factors can accelerate deterioration, including:

• Harsh working environments (hot, humid, or dusty conditions).

• Increased tolerances and worn-out coatings on the rotors.

• Damaged screw geometry leading to efficiency losses.

As the air end wears out, the compressor has to work harder, resulting in:

• Higher energy consumption.

• Increased risk of breakdowns.

• Reduced air quality in compressed air applications.

This not only raises operational costs but can also cause unplanned downtime for industries relying on continuous compressed air supply.

Can the Compressor Air End Be Repaired?

Restoring or repairing an air end is not a simple task. The component represents the peak of engineering technology, with high-precision tolerances, carefully designed static and moving parts, and specialized lubrication systems.

• In oil-injected screw compressors, lubrication ensures minimal friction and heat.

• In oil-free compressors, the air end often requires specialized rotor coatings (such as Teflon).

Attempting to open and reassemble the air end without expertise can lead to:

• Higher energy consumption.

• Oil contamination in compressed air.

• Shortened equipment lifespan.

Because of these risks, the most reliable solution is air end replacement with a genuine part from the original manufacturer.

Best Practices for Air End Lifetime

To maximize the lifespan of your compressor’s air end and avoid expensive failures:

• Follow a preventive maintenance schedule.

• Use genuine compressor spare parts and lubricants.

• Perform regular air compressor inspections.

• Monitor air compressor efficiency and energy usage.

Final Thoughts

The air end is the most critical part of any industrial air compressor. Its health directly affects system efficiency, reliability, and operating costs. Whether you’re using a rotary screw compressor in a factory or in a workshop, prioritizing air end maintenance and preventive maintenance is key to achieving long-term performance.

For expert air compressor services in Saudi Arabia — including air end replacement, screw compressor maintenance, and compressed air solutions — contact Green star, your trusted partner in keeping compressed air systems running at peak efficiency.
